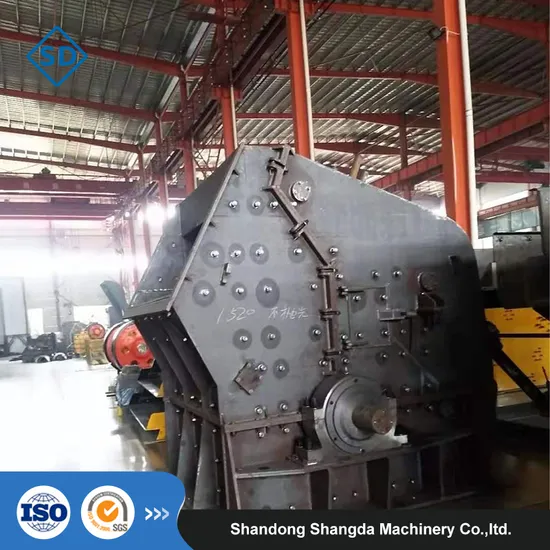

PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design
Home » Products » Impact Crusher » PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design

loading

PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design

Customization: Available
Type: Impact Crusher
Motor Type: AC Motor
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

Basic Info.

Model NO.
PF
Motor Power
400*2kw
Application
Granite, Limestone, Basalt, Cobble, Ore, etc.
Materials
Limestone
Outlet Size
150-300mm
Inlet Size
1200*2400mm
Condition
New
Warranty
One Year Expect Wearing Parts
After-sales Service
Guiding
Model
Pfy 2024
Color
Yellow, Red, Gray, etc.
Motor
Huali, Simens, Wn
Max. Input
600mm
Capacity
1000-1500t/H
Install
Concrete or Steel
Transport Package
Seperate in Container or in Bulk
Specification
2000*2400mm
Trademark
SDSD
Origin
Shandong, China
HS Code
8474209000
Production Capacity
500/Year

Packaging & Delivery

Package Size
240.00cm * 200.00cm * 160.00cm
Package Gross Weight
15400.000kg

Product Description

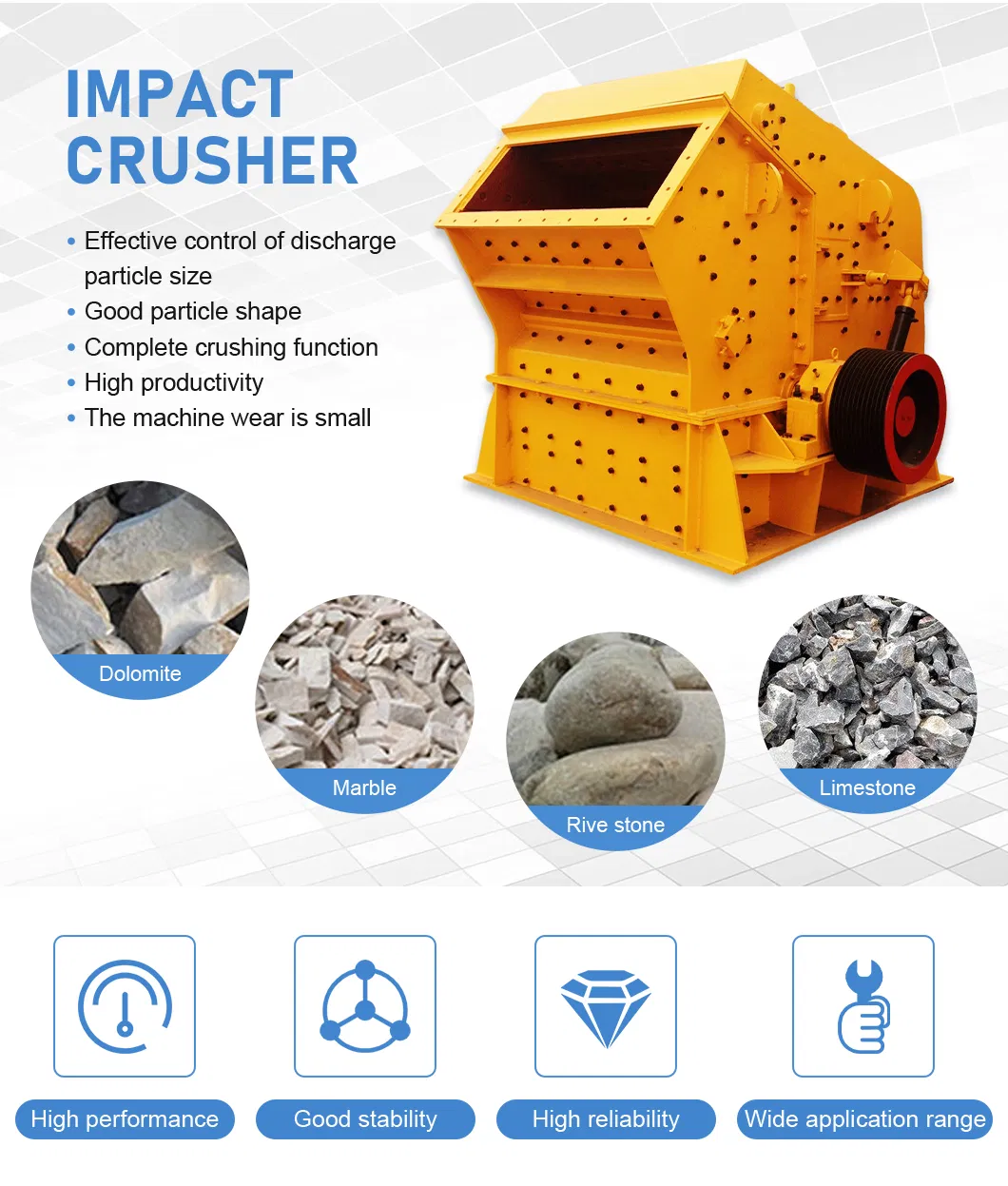

PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design Impact crusher is a crushing machine that uses impact energy to break materials. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action zone of the plate hammer, it impacts and breaks with the plate hammer on the rotor, and then it is thrown to the counter device to break again, and then springs back from the counter liner to the action zone of the plate hammer to break again. This process is repeated, and the material enters the first, second, third and counter cavities from large to small to break again. Until the material is broken to the desired particle size, it is discharged through the discharge port. Adjusting the gap between the counter frame and the rotor can achieve the purpose of changing the particle size and shape of the material.

Features
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.

PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design
PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design
Meet design standards

Simple structure, easy maintenance and use, stable performance, low operating costs.

Working principle

When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action zone of the plate hammer, it impacts and breaks with the plate hammer on the rotor, and then it is thrown to the counter device to break again, and then springs back from the counter liner to the action zone of the plate hammer to break again.
PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design

PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design
Simple operation

The grate gap can be adjusted according to user requirements, and the discharge particle size can be changed to meet the needs of different users.

High degree of automation

The material is fed into the machine from the upper feeding port, and is crushed by the impact of the hammer moving at high speed. The screen plate is arranged at the lower part of the rotor.
PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design

Model Specification (mm) Size of feed opening (mm) Max. feeding size (mm) Capacity (t/h) Power
(kw)
PF1007 1000 x700 400 x730 200 30-50 55
PF1010 1000x1050 400x1080 250 50-80 75
PF1210 1200x1050 400x1080 300 70-120 110
PF1212 1200×1250 400x1300 300 70-150 110
PF1214 1200x1400 400x1430 300 70-180 132
PF1315 1300x1500 860x1520 400 100-220 200
PF1320 1300x2000 860x2030 400 150-280 315
PFY1315 1300x1500 500x1500 600 260-400 200
PFY1416 1400x1600 700x1600 800 400-600 250
PFY1620 1600x2000 900x2000 700 400-800 200*2
PFY1820 1800x2000 1000x2000 900 600-800 250*2
PFY2024 2000x2400 1200x2400 1500 1000-1500 400*2


PF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor DesignPF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor DesignPF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor DesignPF-1214 Impact Crusher Heavy Duty Secondary Crushing for Mining, Quarry, Aggregate Optimized Rotor Design
