VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining
Home » Products » Sand Making » Others Sand Making » VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining

loading

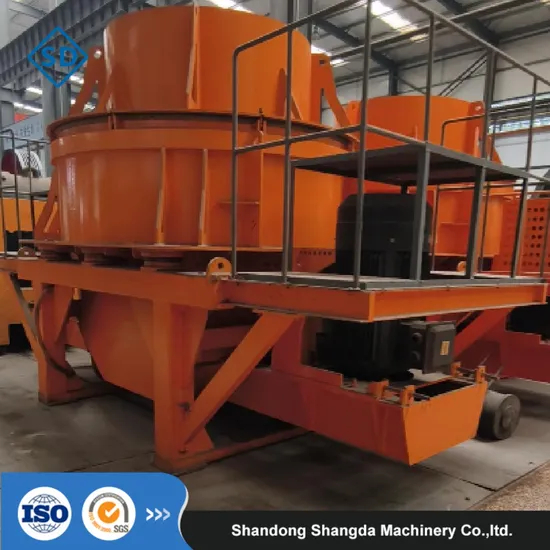

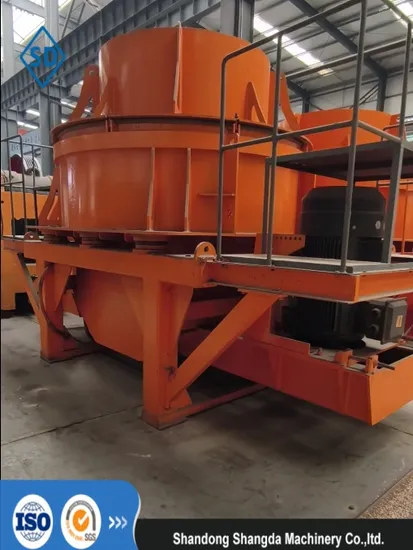

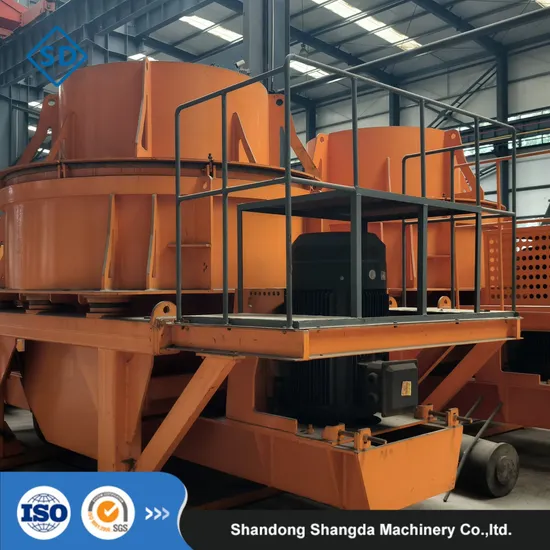

VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining

Customization: Available
Type: Cone Crusher
Motor Type: AC Motor
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

Basic Info.

Model NO.
VSI
Motor Power
180
Application
Mine
Materials
Fine Sandstone
Outlet Size
18-48mm
Inlet Size
30-50mm
Condition
New
Warranty
One Year Expect Wearing Parts
After-sales Service
Guiding
Use
Sand Making
Speed
1700-1890r/Min
Capacity
120-180t/H
Soft Material
35mm
Hard Material
30mm
Principle
Vertical
Transport Package
in Container or in Bulk
Specification
double motors
Trademark
SDSD
Origin
Shandong, China
HS Code
8474209000
Production Capacity
1000/Year

Packaging & Delivery

Package Size
414.00cm * 228.00cm * 242.00cm
Package Gross Weight
14200.000kg

Product Description

VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining VSI sand making machine
VSI sand making machine adopts "stone beating stone" and "stone beating iron" crushing mode, high crushing efficiency; With dual motor drive, automatic lubricating oil system, safety, reliability upgrade, long service life.
Product Parameters




Model  capacity (t/h) Best feeding size(mm) speed (r/min) Power  (kw) Dimesion (L×W×H) (mm) Weight (t)
Feed at center&sides All feed at centre  Soft materials Hard materials
VSI7611 120-180 60-90 35 30 1700-1890 110 3700×2150×2100 11.8
VSI8518 200-260 100-130 40 35 1520-1690 180 4140×2280×2425 14.5
VSI9526 300-380 150-190 45 40 1360-1510 264 4560×2447×2778 17.8
VSI1140 450-520 220-260 50 45 1180-1310 400 5000×2700×3300 25.6

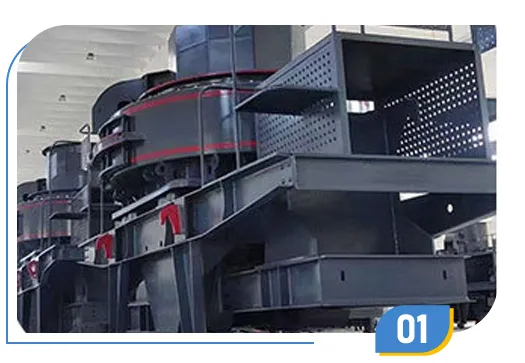

VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining
LOW ENERGY CONSUMPTION

The process technology improves the internal quality and appearance quality of the equipment and ensures a low failure rate

ONE MACHINE WITH MULTIPLE FUNCTIONS

It has a variety of crushing chamber types, which realizes the free conversion of "stone beating stone" and "stone beating iron", and makes the finished particle shape excellent
VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining

VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining

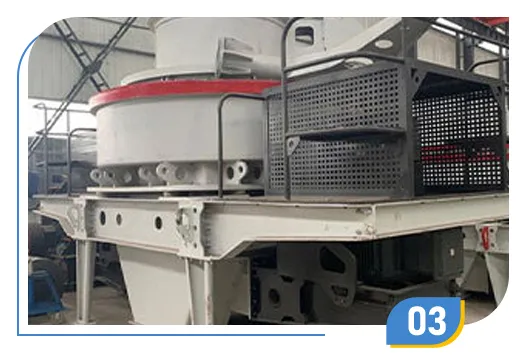

EASY TO MAINTAIN

Hydraulic cover opening device, easy to repair and maintenance, saving time and effort. Over vibration display and alarm device, automatic detection.

SELF-CIRCULATING SYSTEM

The special air self-circulation system greatly reduces the exhaust air volume, less dust and less noise, which is conducive to environmental protection
VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining


VSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & MiningVSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & MiningVSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & MiningVSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & MiningVSI Sand Making Machine 50-500t/H, ISO Certified for Quarry & Mining
