Metal Crusher Industrial Cardboard Shredder

Customization:	Available
After-sales Service:	One Year Expect Wearing Parts
Warranty:	One Year

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

200-6000series

Type

Scrap Metal Shredder

Automation

Automatic

Certification

ISO

Conveyor

Chain and Belt Conveyor

Uses

Waste Motor Rotor, Waste Car Body, Tinplate,etc.

Magnetic Separation

Independent

Maintenance Station

Hydraulic

Dust-Remover

Cyclone Dust Remover,and Bag Dust Remover

Capacity

3-100t/H

Transport Package

Nude in Container or in Bulk

Specification

200-6000series

Trademark

SDSD

Origin

Shandong, China

HS Code

8474209000

Production Capacity

100/Year

Packaging & Delivery

Package Size

240.00cm * 200.00cm * 250.00cm

Package Gross Weight

44000.000kg

Product Description

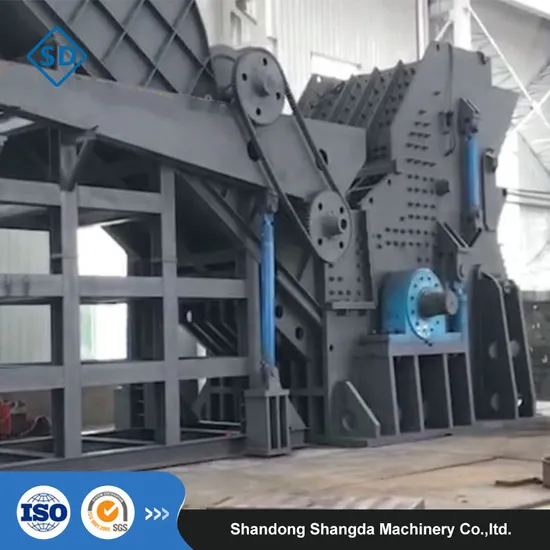

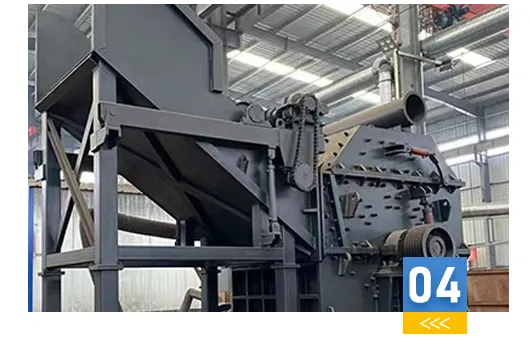

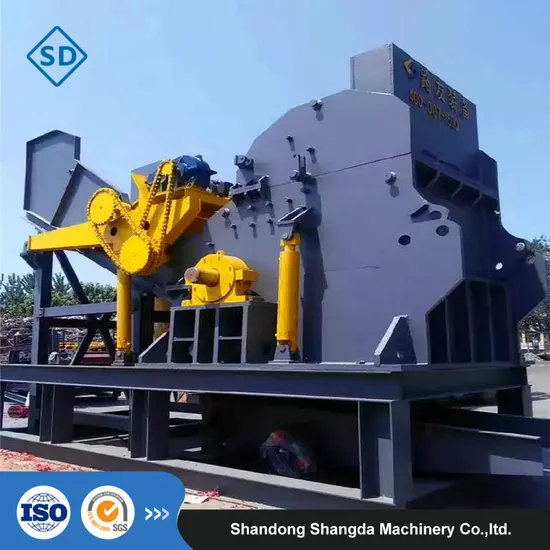

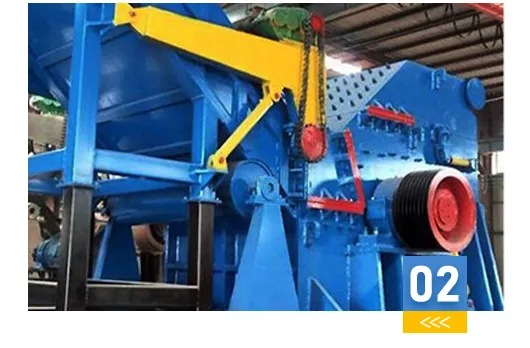

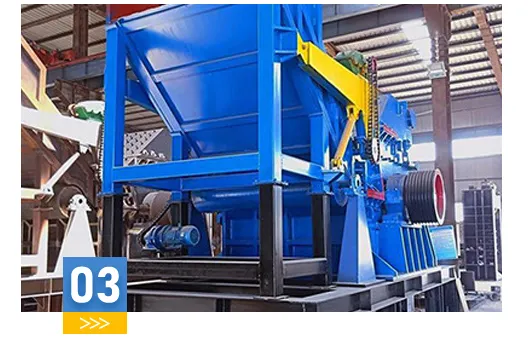

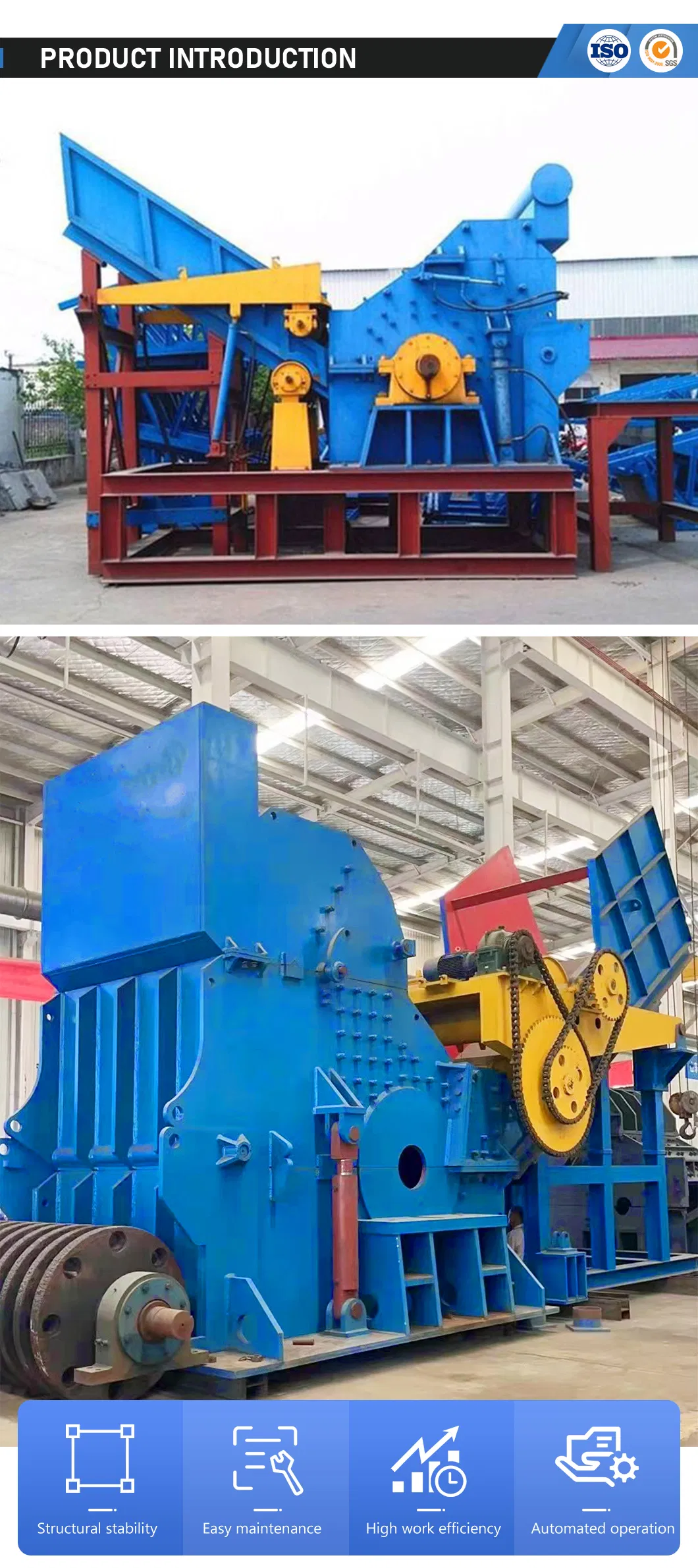

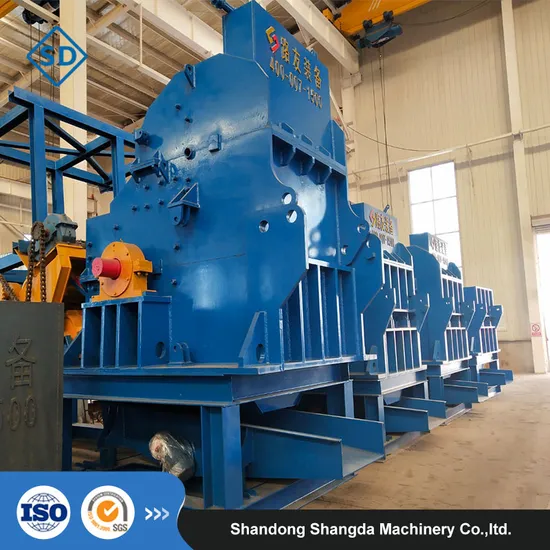

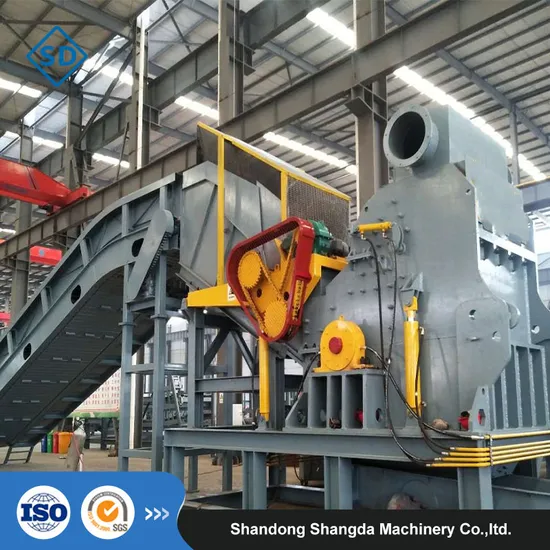

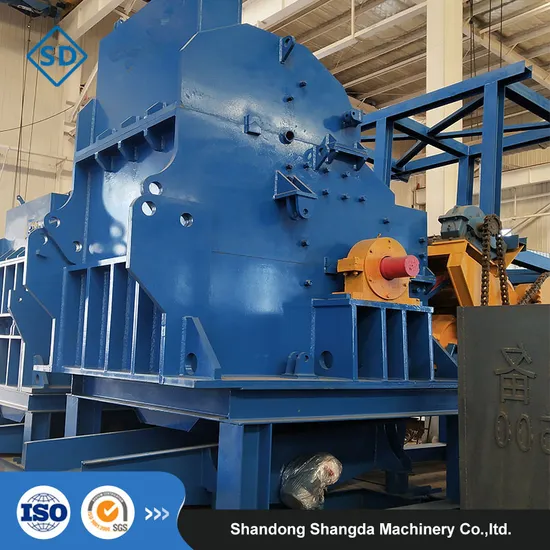

Metal crusher is a kind of crushing equipment, in the industry metal crusher is also called (metal crusher), this equipment is a variety of waste metal cans, paint buckets, waste thin material metal, paint buckets, color steel tile, press block, motorcycle frame, bicycle frame, waste appliances, car shell, carriage plate, keel bar, rolling gate, scrap Angle iron and other thick scrap metal crushing. The material pulverized by the metal crusher equipment reduces the transportation cost, and increases the speed of the scrap iron smelting furnace.

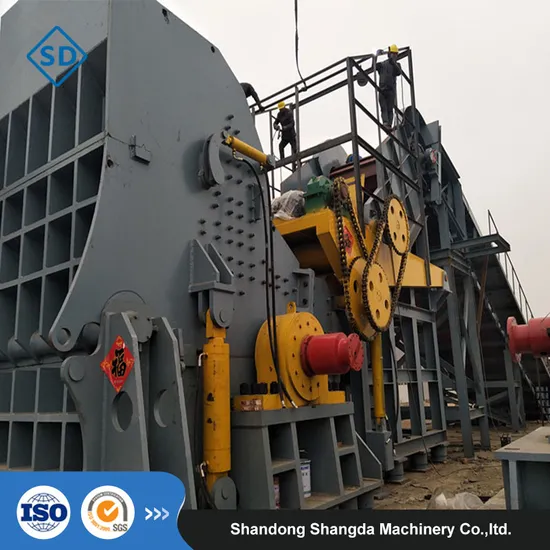

Metal Crusher Industrial Cardboard Shredder

Wide range of applications

In addition to the crushing of scrap metal, it is also suitable for the crushing of wood, waste paper, plastic, straw, automobile tires, waste paper, household garbage cans and other materials.

Easy maintenance

The hob of small crusher adopts the whole structure due to the structural size limitation, and the hob of medium and large crusher adopts the assembled structure, which can directly replace the damaged hob.

Low speed & low noise

High torque, and with mechanical/ hydraulic, electrical overload protection.

Low equipment use and maintenance cost

The equipment is reasonably designed and well-manufactured, which extends the service life of the equipment and reduces the use and maintenance costs of the equipment.

NO.	Model	Feeding size(m)	Capacity(t/h)	Power(kw)	Transformer
1	200	1.4	3-5	200	low voltage
2	250	1.4	4-6	250	low voltage
3	280	1.6	5-7	280	low voltage
4	315	1.6	6-8	315	low voltage
5	450	1.6	8-12	450	high voltage
6	750	1.8	13-18	750	high voltage
7	900	2.2	18-25	900	high voltage
8	1200	2.2	20-30	1200	high voltage
9	2000	2.5	45-65	1600	high voltage
10	3000	2.6	55-80	2250	high voltage
11	4000	2.7	60-80	2950	high voltage
12	4500	2.7	90-100	3300	high voltage
13	6000	2.8	80-100	4400	high voltage

Feeding	1.6m	Crusher base	1set
Chain belt conveyor	1set 16m	Crusher rotor	1set
Discharging conveyor	1set 8m	Hydraulic maintenance station	1set
Discharging conveyor	1set 8m	Hammer head	1set10pcs,36kg/piece, material:high manganese alloy
Waste conveyor	1set 6m	Bottom screen	1set6pcs,material:high manganese alloy Note:capacity of crushing car shell 6-8t/h
Independent magnetic separation	1set	Electric cabinet	1set
Vibrating screen	1set	Transmission shaft	1set
Different materials discharging system	1set	Deceleration system	1set
Main frame	1set(steel deepth50)	Dust-remover system	1set of cyclone dust remover,1set of bag dust remover
Forced feeder	1set	Main motor(base)	315kw
