| Customization: | Available |
|---|---|
| Type: | Mobile Crusher |
| Motor Type: | AC Motor |
| Quantity: | |
|---|---|

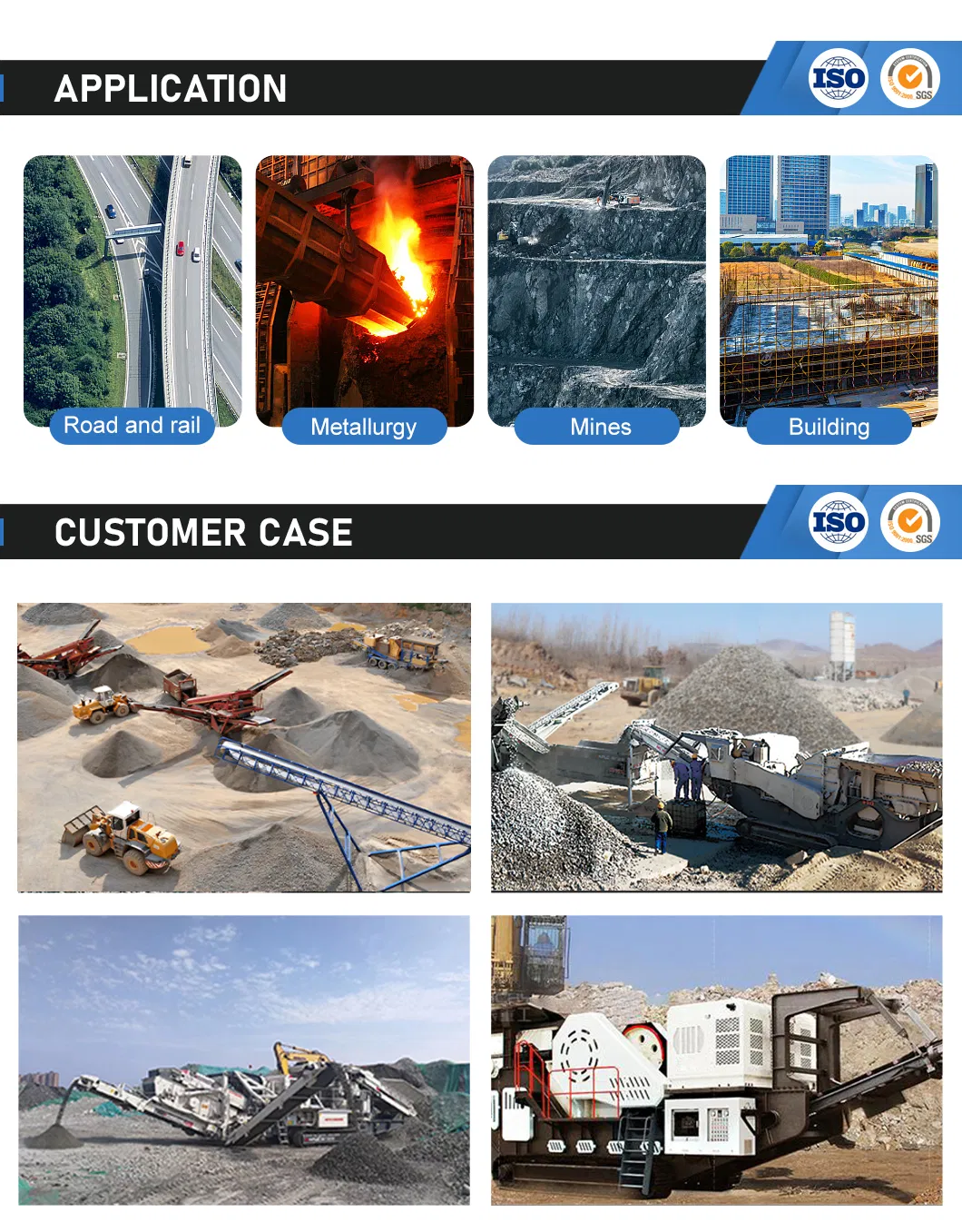

Mobile Crusher -- The mobile crusher is a multi-stage mining machinery for screening bulk materials and inspecting discharge mining equipment in accordance with specifications. Mainly used in metallurgy, chemical industry, building materials, water conservancy, electricity industry often need to relocate processing business materials, especially road, railway, water supply and power supply projects of mobile stone station business, customers can handle raw materials, according to the scale and different types of material requirements, finished products using a variety of configurations.

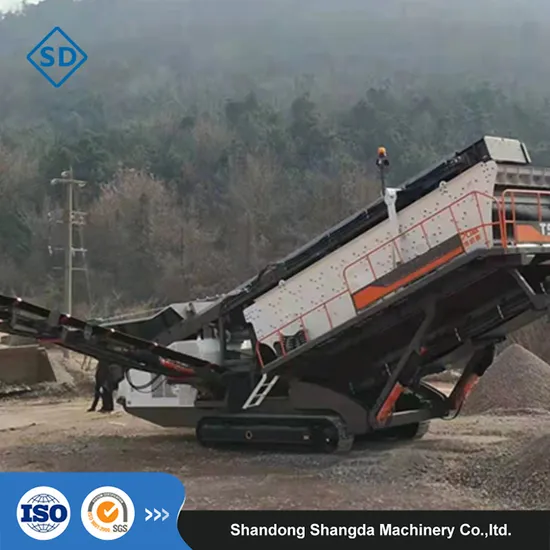

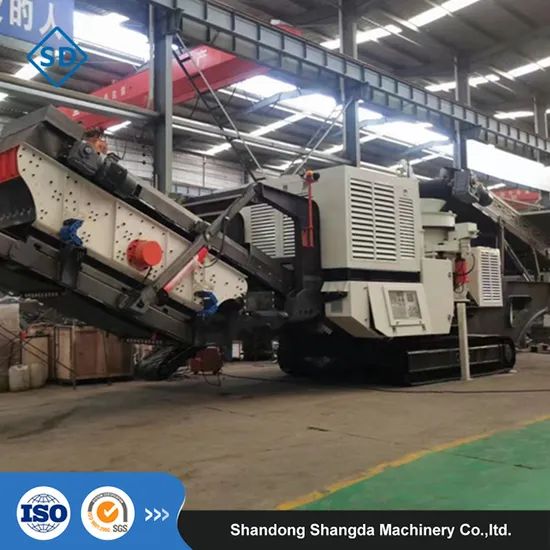

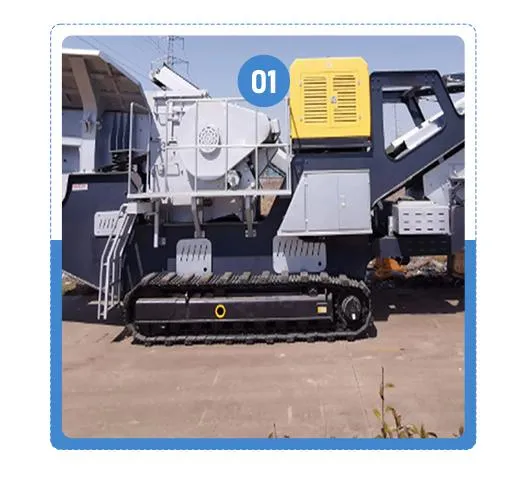

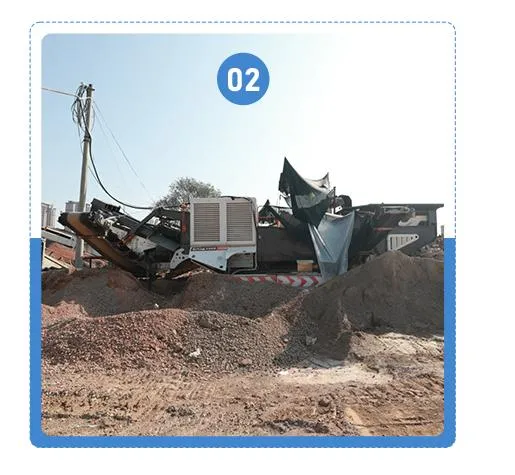

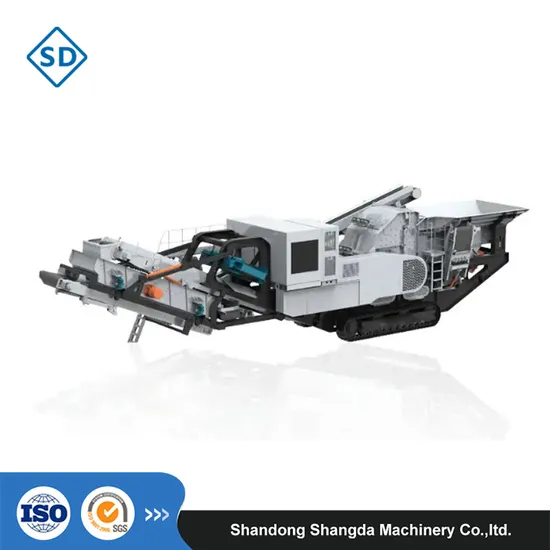

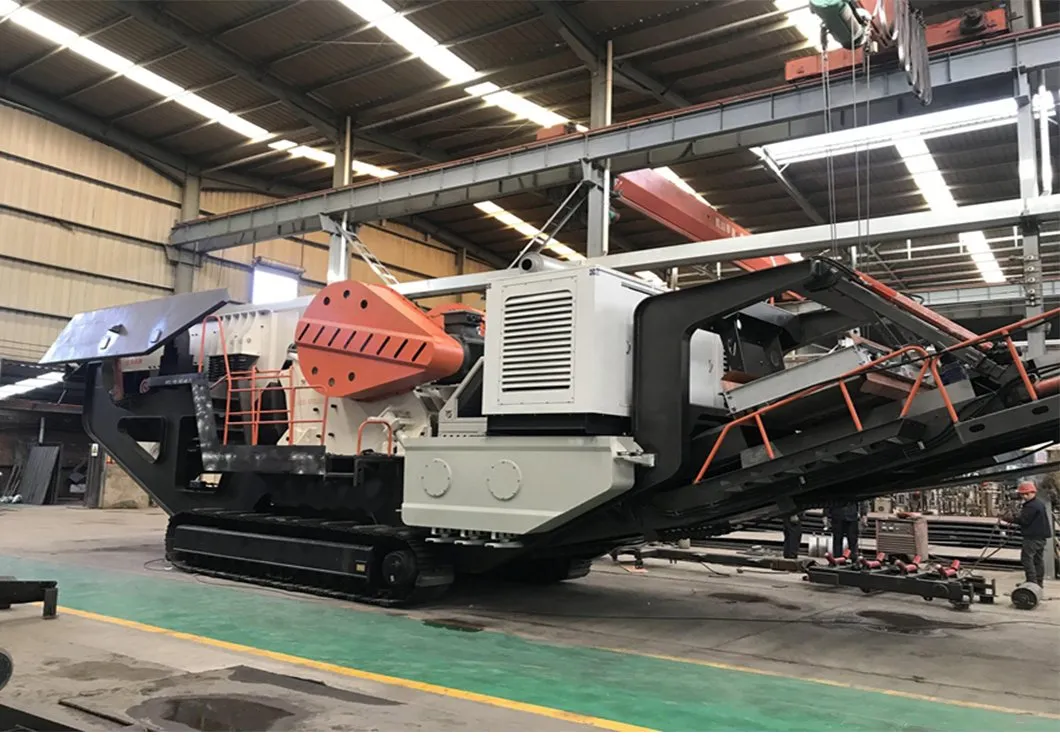

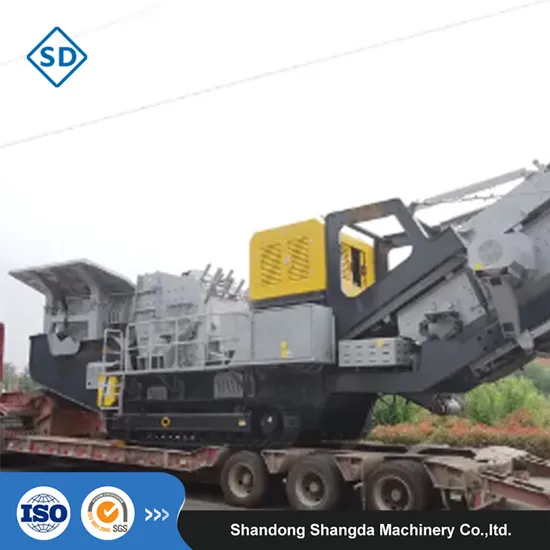

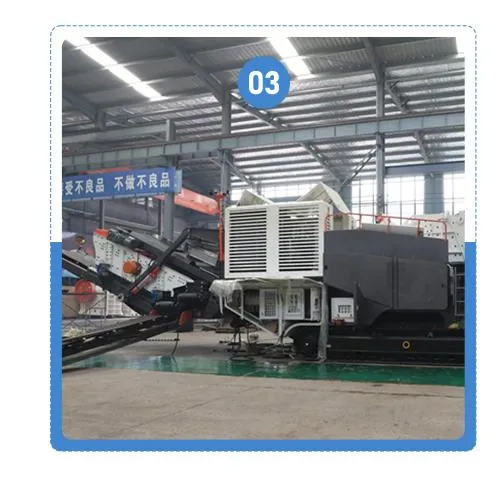

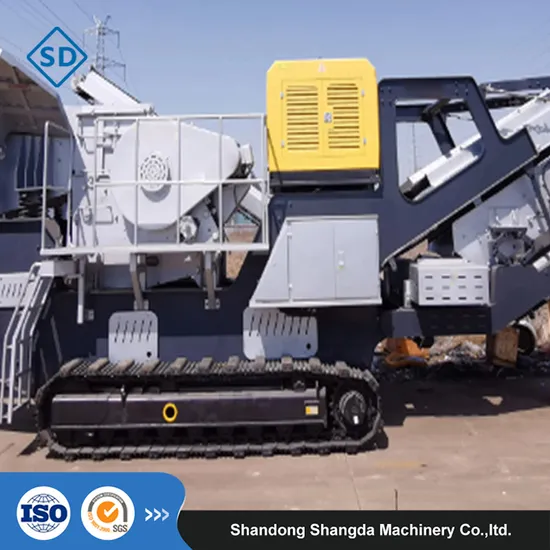

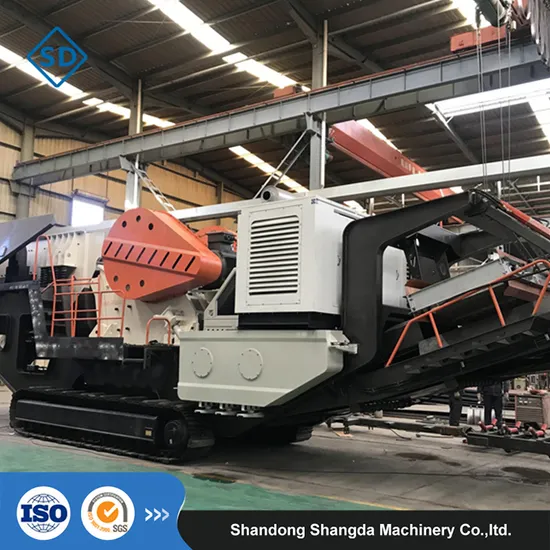

Crawler mobile crushing station, full hvdraulic svstem is adopted to drive the chassis of tracked vehicle This machine has stable performance and heautiful shane lt is widely used in mad and hridne constnuction urhan construction mininn and other fields1. The excellent performance of power system, use low fuel consumption, low noise diesel engine, the engine may be started with low temperature preheatng device, the device in 25 t low temperature environment will also be able to start.2. All-steel ship structure chassis, with features of high strength and low ground ratio, has good adaptability to mountainous areas and wetlands. a Hiah torua walkina motor with larna deisina forea and hiah roliahilitu newidas roliabla nowor sunnoet for tha walkina svetam4. Servo lead operating system, easy to operate, accurate control, infinitely variable speed walking, remote control by computer, convenient and effectivel5. The highly efficient and mature crushing and screening equipment ensuring the excellent quality of the whole set of equipment
| Model | Ycs155 | YcS240 | |
| Equipment Configuration | Crusher | CS155 | cs240 |
| Belt Type Vibrating Feeder | GD-12x4/15 | GLD-15x4/15 | |
| Volume of Upper Hopper | 5 | 5 | |
| Height of Final Products Receivirg | 3100 | 3100 | |
| Main Belt Conveyor | B10COx9M | B1000x9M | |
| Ganset(Kw) | 155 | 240 | |
| Transportation Length(mm) | 12500 | 12500 | |
| Transportation Width(mm) | 3240 | 3240 | |
| Transportation Haight(mm) | 39oo | 3900 | |
| TransportationWeigh(t) | 39 | 48 | |
| Clawler mobile jaw&impact crushing station | |||||
| Model Technical Data | YG935E69L | YG935FW121 II L | YG1138E71L | YG1138FW315 II L | YG1138EWB6L |
| Vibrating Feeder | GzD-960x0939 | GzD-960x0939 | GzD-1100x3800 | GzD-1100x3800 | GzD-1100x3800 |
| Crushor | PE6O0x900 | PFW-1214 | PE750x1080 | PFW-1315 l | PEW880 |
| Main Belt Conveyor | B800x8.5M | B600x8.5M | B1000x9M | B1000x9M | B1000x9M |
| Dischargirg Haigh of Main Belt Conweyor(mm) | 3200 | 3200 | 3500 | 3500 | 3500 |
Side-openningBelt Conweyor(Optional) | B450x3M | B450x3.2M | B500x3.5M | B500x3.5M | B500x3.5M |
| Discharging Haight of Side-openning Belt Conveyor(mm) | 2800 | 2800 | 3100 | 3000 | 3100 |
| Power of Gerset(Kw) | 18o | 250 | 200 | 3o0 | 250 |
| TransportationLergth(mm) | 11900 | 11900 | 13300 | 13300 | 14200 |
| Transportation Width(mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
| Transportation Height(mm) | 3650 | 3650 | 4500 | 4500 | 5000 |
| Transportation Weight(t) | 43.5 | 50 | 59 | 59 | 67 |
| Working Length(mm) | 12100 | 12100 | 13500 | 13500 | 15200 |
| Working Width(mm) | 3100 | 3100 | 3100 | 3100 | 3300 |
| Working Height(mm) | 4100 | 4100 | 5100 | 4800 | 5500 |
| Classification of ltems | A Type Dual Power Crawler Type Mobile Feeding and Screening plant | Type DualPower Crawler Type Mobile Feoding and Screening plant | |||||
| Model | Y3S154GL | Y3S184GL | Y3S186GL | Y3S154BL | Y3S184BL | Y3S1868L | |
| Vibrating Feeder | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS1548 | 3YzS1848 | 3YZS1860 | |
| Feeding Hopper | Belt Conveyor Feeding | Sorting and Feeding | |||||
Belt Corveyor | Feeding Belt Conveyor | B1000x4M | B100Cx4M | B120Ox4.5 | B1200x3M | B1200x3M | B1200x3 |
Main BeltConveyor | B800x5M | B10O0x5M | B1000x5M | B10O0xBM | B1200x8M | B1200x9M | |
Belt Conveyor Undar Vibrating Screan | B800x4.5M | B1000x4.5M | B100Ox5.5 | B800x7M | B1000xM | B1000x8 | |
Left Side-opening Belt Corveyor | B500x7.3M | B500x7.3M | B650x7.3M | B500x7.3M | B500x7.3M | B650x7.3M | |
Righ Side-opening Balt Corveyor 1 | B500x7.3M | e500x7.3M | B650x7.3M | B500x7.3M | B500x7.3M | B650x7.3M | |
Righ Side-opening BeltConveyor 2 | B500x7.3M | B500x7.3M | B650x7.3M | B500x7.3M | B500x7.3M | B650x7.3M | |
| Ganset(Kw) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Transportation Length(mm) | 12300 | 12300 | 13500 | 12000 | 12000 | 12000 | |
| Transportation Width(mm) | 2700 | 2920 | 2920 | 2900 | 3150 | 3150 | |
| Transportation Heigh(mm) | 3900 | 3900 | 3900 | 3600 | 3600 | 3600 | |
| Transportation Weight(t) | 28 | 30 | 34 | 28 | 32 | 35 | |
