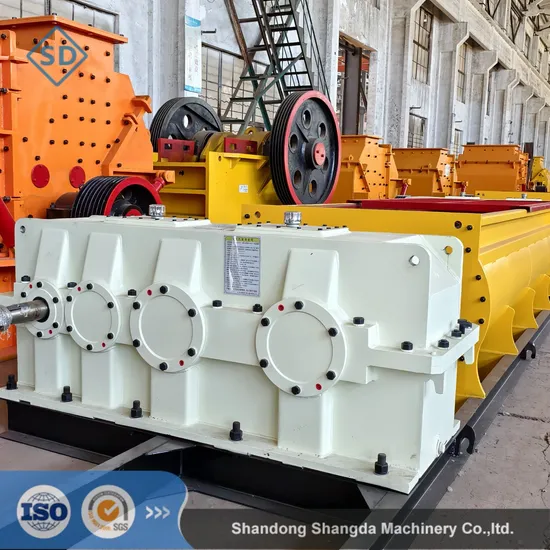

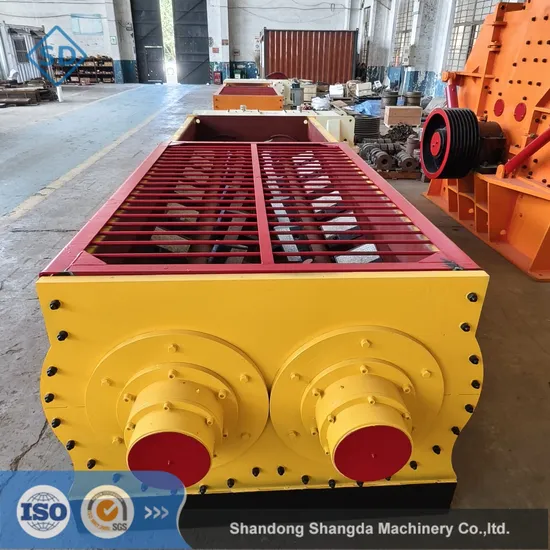

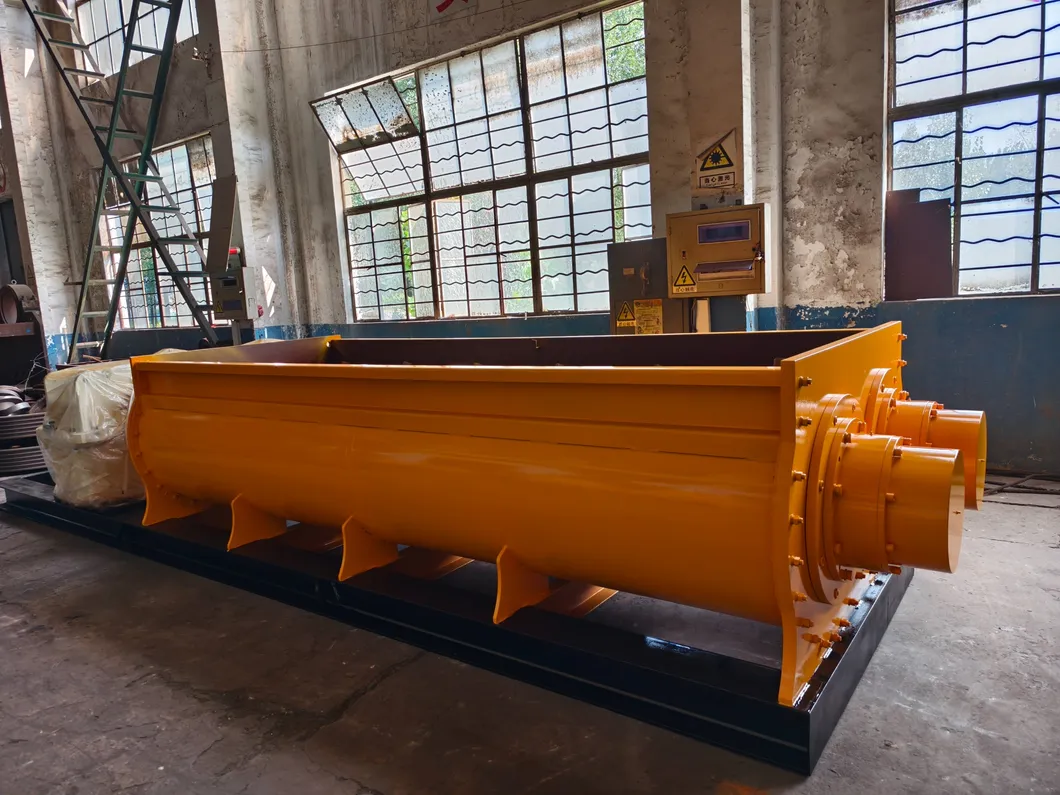

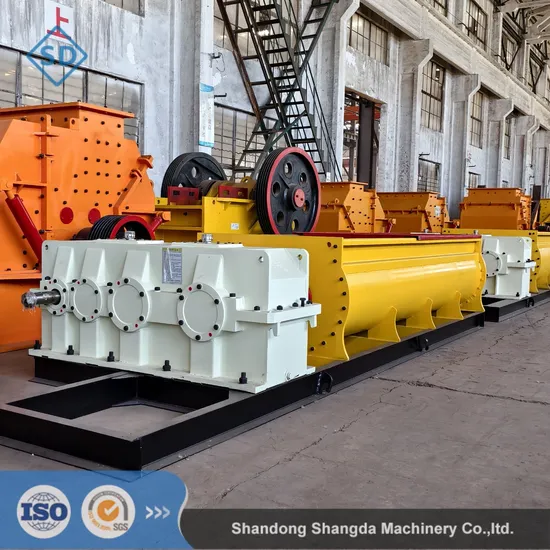

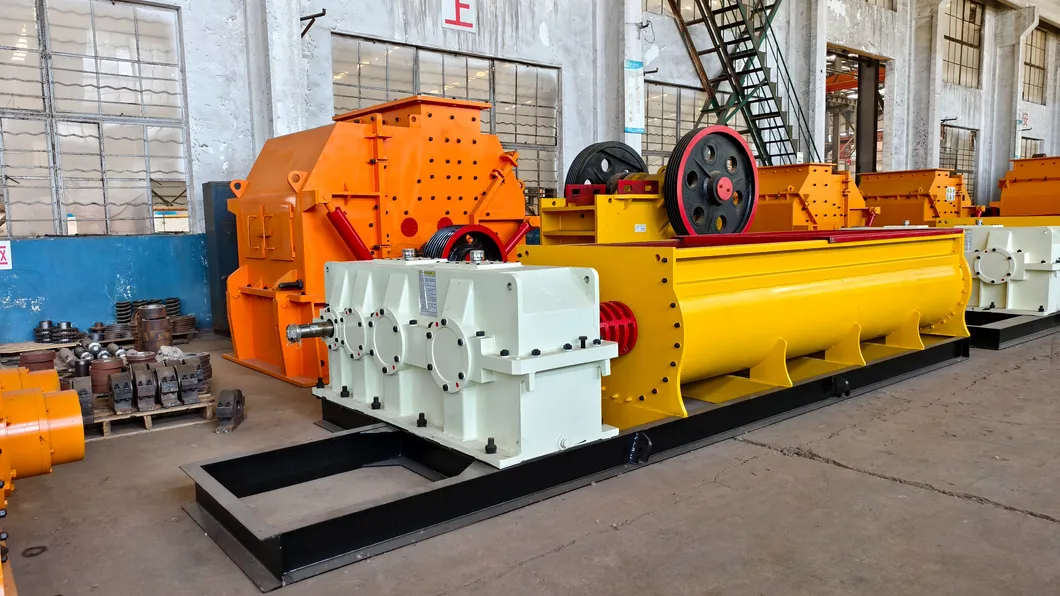

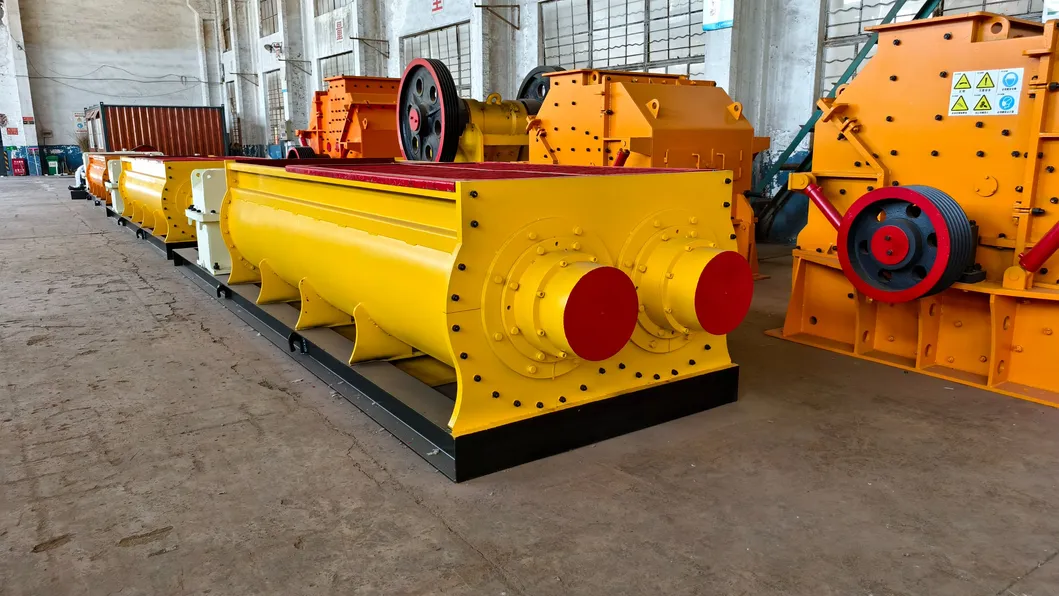

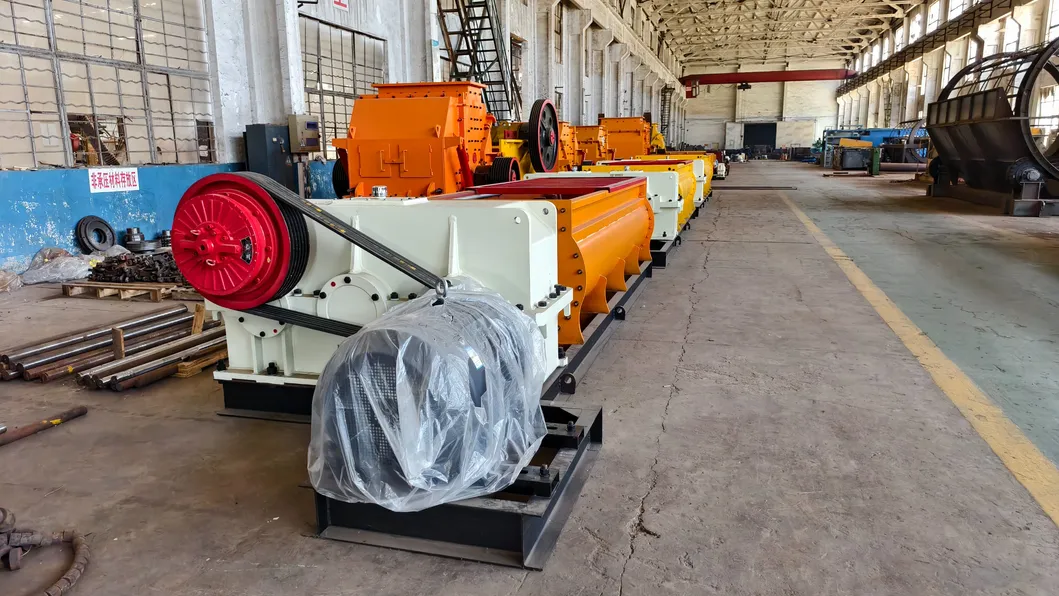

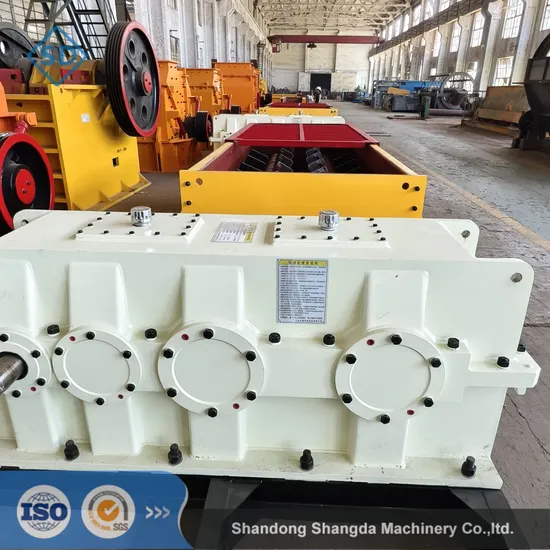

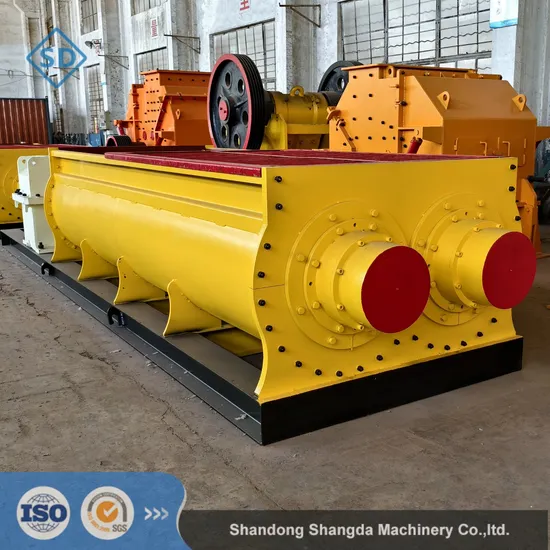

Double shaft mixer product introduction
The double-shaft mixer is a equipment that uses a pair of spiral axes with mixing blades to rotate synchronously, and humidifies and agitates powdery materials at the same time. The equipment has high mixing efficiency, compact structure, stable operation, clean and environmental protection.
Outstanding advantage
1, the whole mixing and conveying process is carried out in a closed space, no dust leakage, clean and environmental protection;
2, set mixing, humidification, transportation in one, good mixing uniformity, high production efficiency, large capacity;
3. The end of the shaft is sealed by the combination of labyrinth type and packing type, which plays a double sealing role and has good sealing effect;
4, mixing blade is made of wear-resistant material, and special surface treatment, with high wear resistance;
5, compact structure, small space, smooth transmission, high reliability, low noise.
Working principle

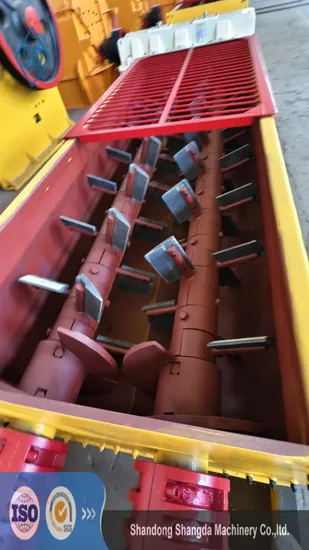

The working principle of the double-shaft mixer is that the transmission device drives the two blades with mixing blades to rotate synchronously. When the material enters the groove through the feeding port, the water spraying device immediately sprits water to make the material change from dry state to wet state. At the same time of humidification, the wet materials are continuously stirred and mixed with each other under the action of the spiral mixing blade, and the direction of the discharge port is moved, and the qualified materials are finally unloaded from the discharge port.
| Model | 2LJ850 | 2LJ1000 | 2LJ1200 |
| Dia.(mm) | 680 | 740 | 900 |
| Speed(r/min) | 38 | 38 | 38 |
| chute(mm) | 3500 | 4000 | 4000 |
| Capacity(m³/h) | 100-150 | 160-220 | 260-280 |
| Power(kw) | 75-90 | 90-110 | 110-132 |
