Conveyor Machine Minng Crusher

Customization:	Available
Type:	Slat Conveyor
Structure:	Belt Conveyor

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Material

Rubber

Material Feature

Heat Resistant

Certification

ISO9001:2008

Energy Saving

Warranty

1 Year

Color

Black

Customized

Condition

New

Lenght

25,30,40m

Use

Conveying Raw Material and Final Materials

Motor

Reducer Motor

Transport Package

Wooden Cases

Specification

B500, 650, 800, 1000, 1200MM

Trademark

SDSD

Origin

Shandong, China

HS Code

842833000

Production Capacity

5360/Year

Product Description

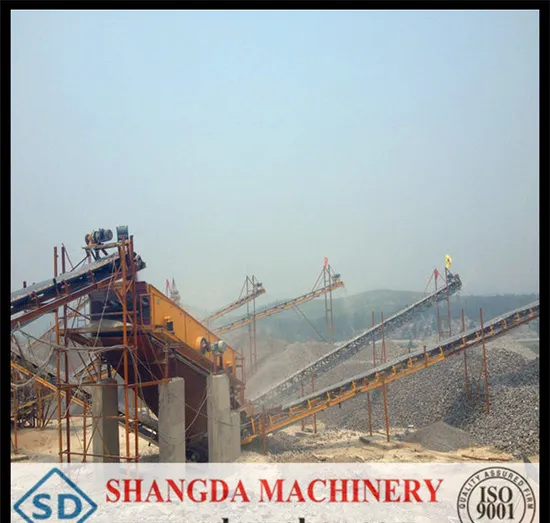

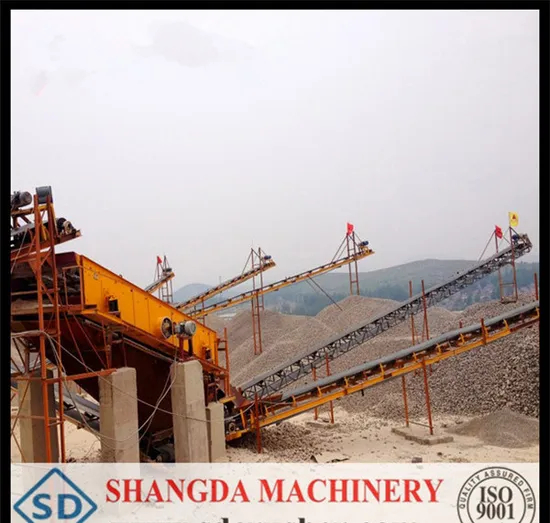

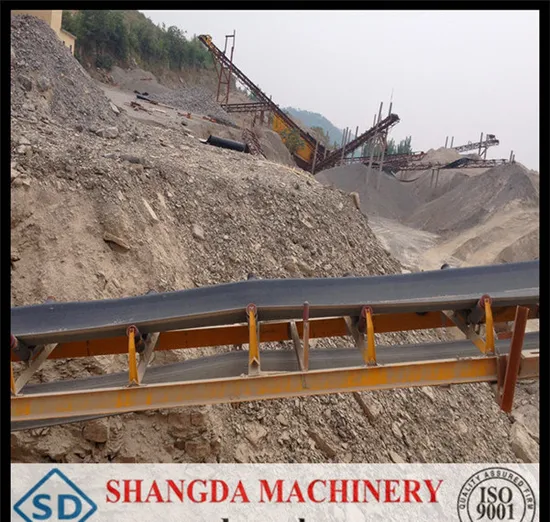

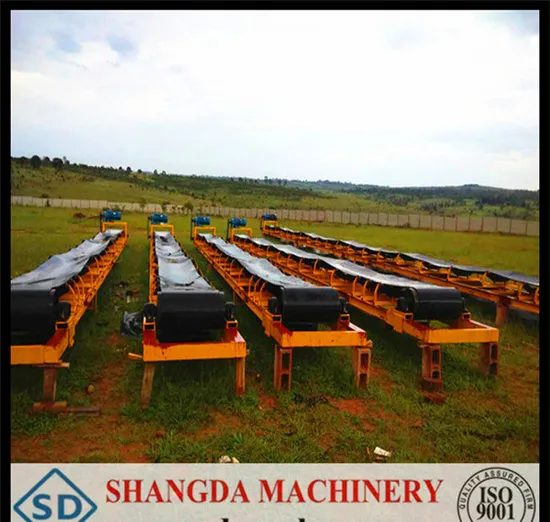

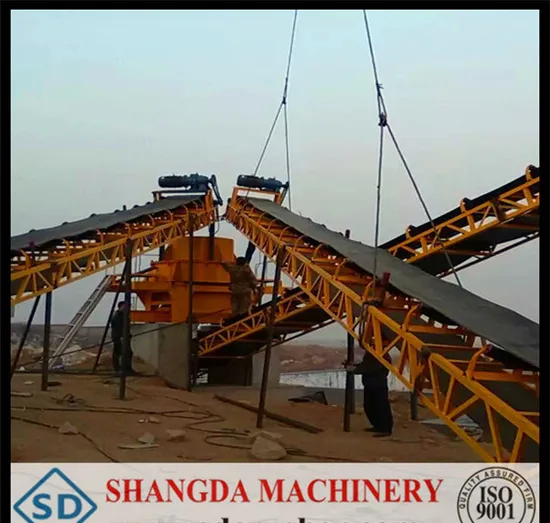

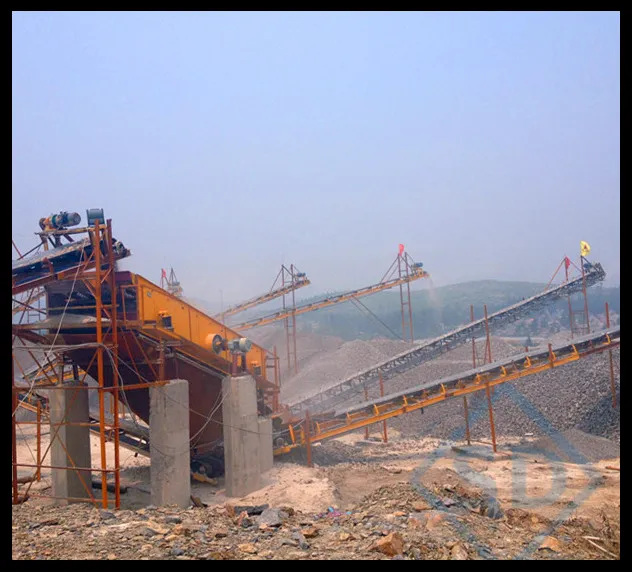

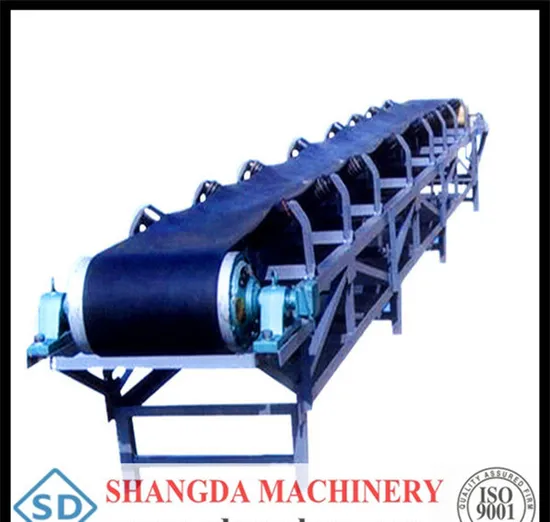

Belt Conveyor is used for transferring material in bulk or container. The belt conveyor is widely used in the industry of mining, building materials, metallurgy, coal and so on. Users can not only transport material with one conveyor or several conveyors, but also can transport with a horizontal/slope transfer system that made up by this kind of conveyors and other conveyors so that can meet the request of different working conditions. It can transport materials in large quantity. It is simple in operation, convenient in maintenance, superior quality.
Features
1.The belt conveyors made of SJLC(heat and cold resisted material) can be operated in the temperature situation ranging from -20ºC to +40ºC. The temperature of transferred material by this belt conveyor should be lower than 50ºC.
2. Simple in structure, easy to maintain, long service life, high transfer capacity.
Working Principle
Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. When the materials fall down on the conveyor, the roller under the belt will drive the belt forward. In this way, it conveys the material.

Belt width(mm)	Length (m) / power (kw)			Transferring speed (M/S)	Capacity(t/h)
400	≤12 / 1.5	12-20 / 2.2-4	20-25 / 3.5-7.5	1.3-1.6	40-80
500	≤12 / 3	12-20 /4-5.5	20-30 / 5.5-7.5	1.3-1.6	78-191
650	≤12 / 4	12-20 / 5.5	20-30 / 7.5-11	1.3.-16	131-323
800	≤6 / 4	6-15 /5.5	15-30 /7.5-15	1.3-1.6	278-546
1000	≤10 / 5.5	10-20 / 7.5-11	20-40 / 11-12	1.3-2.0	435-853
1200	≤10 / 7.5	10-20 /11	20-40 / 15-30	1.3-2.0	655-1284
1400	11	11-22	22-45	1.3-2.4	1300-1450
1600	≤10 / 7.5	10-20 /11	20-40 / 15-30	1.3-2.4	1500-1600

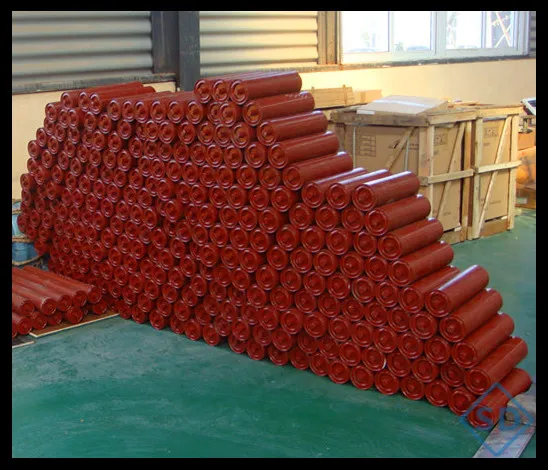

Rollers
