Heavy Duty Industrial Silica Sand Vibrating Sieve Screening Machine for Mining and Quarry

Customization:	Available
Type:	Circular
Function:	High Frequency Vibrating Screen

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

YK

Transmission Structure

Vibrating Screen

Usage

Mine Shaker

Works

Spiral Flash Shaker

Object

Ore

Shaft Number

Single

Running Track

Circular Vibrating Screen

Supporting Device

Coil Spring

Warranty

1 Year

Customized

Condition

New

After-sales Service

Guiding

Max. Feeding

80mm

Mesh Size

1300*4000;1800*6000

Power

15-30kw

Capacity

40-800t/H

Frenquency

960r/Min

Color

Yellow,Red,White

Separate or Not

Yes

Mesh

Replaceable

Guarantee

One Year

Transport Package

in Container or in Bulk

Specification

1-4 layers

Trademark

SDSD

Origin

Shandong, China

HS Code

8474100000

Production Capacity

700/Year

Packaging & Delivery

Package Size

240.00cm * 200.00cm * 250.00cm

Package Gross Weight

44000.000kg

Product Description

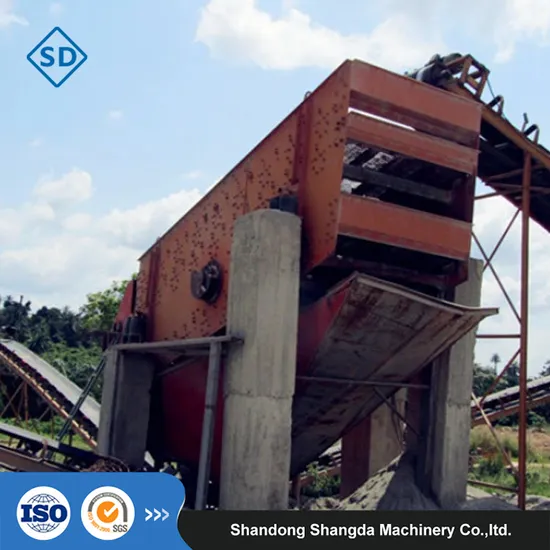

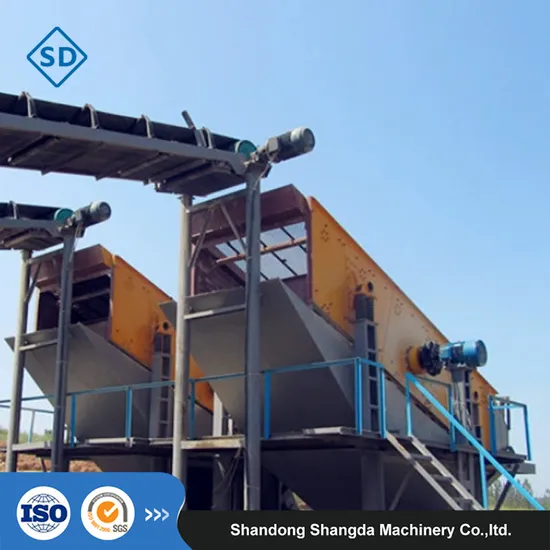

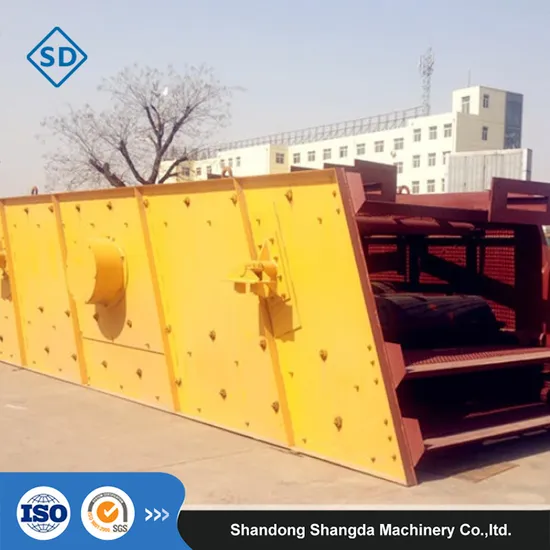

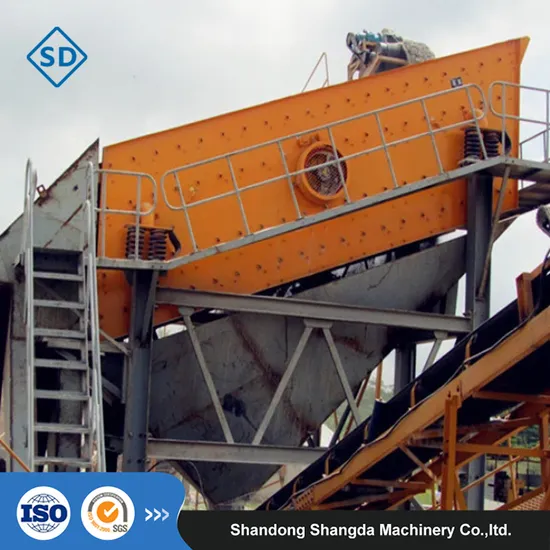

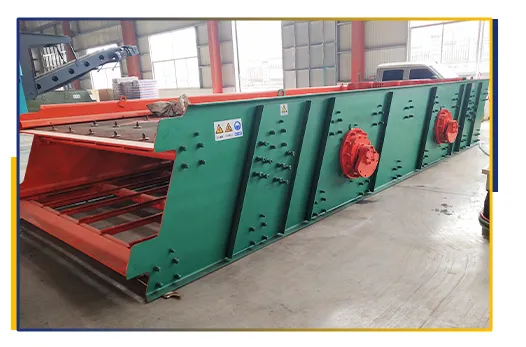

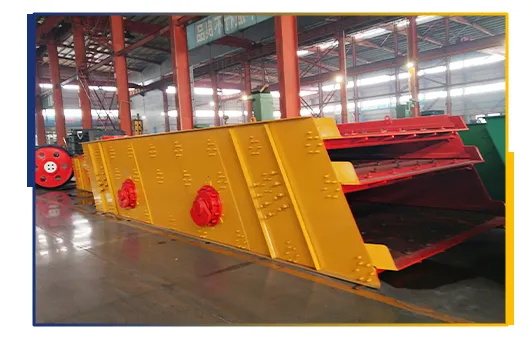

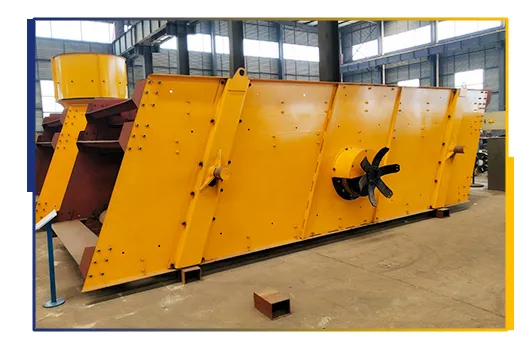

YK vibrating screen

YK vibrating screen, also known as YK series circular vibrating screen, is a kind of equipment that uses the principle of different particle size of materials to screen materials and grade materials. The motion path of the screen frame is elliptical. The material on the screen is thrown up by the upward motion of the screen, and after a distance, it falls back to the screen surface. This is repeated to complete the screening in the process of moving from the feed end to the discharge end.

The amplitude of the vibrating screen can be adjusted by changing the weight and position of the counterweight.

TECHNICAL DATA.:

Model	Qty of layers	Max. Feed size(mm)	Sieve Size(mm)	Power(kw)	Capacity (t/h)	Vibrating Frequency (r/min)	Double Amplitude (mm)
YK1030	2-4	80	1000×3000	4	20-70	960	5
YK1240	2-4	80	1200×4000	5.5	30-90	960	5
YK1345	2-4	80	1300×4000	15	40-100	960	6
YK1555	2-4	120	1500×5000	22	80-180	960	6
YK1860	2-4	150	1800×6000	22	100-220	960	7
YK2160	2-4	150	2100×6000	30	120-260	960	8
YK2470	2-4	180	2400×7000	37	160-280	960	8
YK2670	2-4	180	2600×7000	37	200-300	960	8
YK3070	2-4	240	3000×7000	45	300-360	960	8
