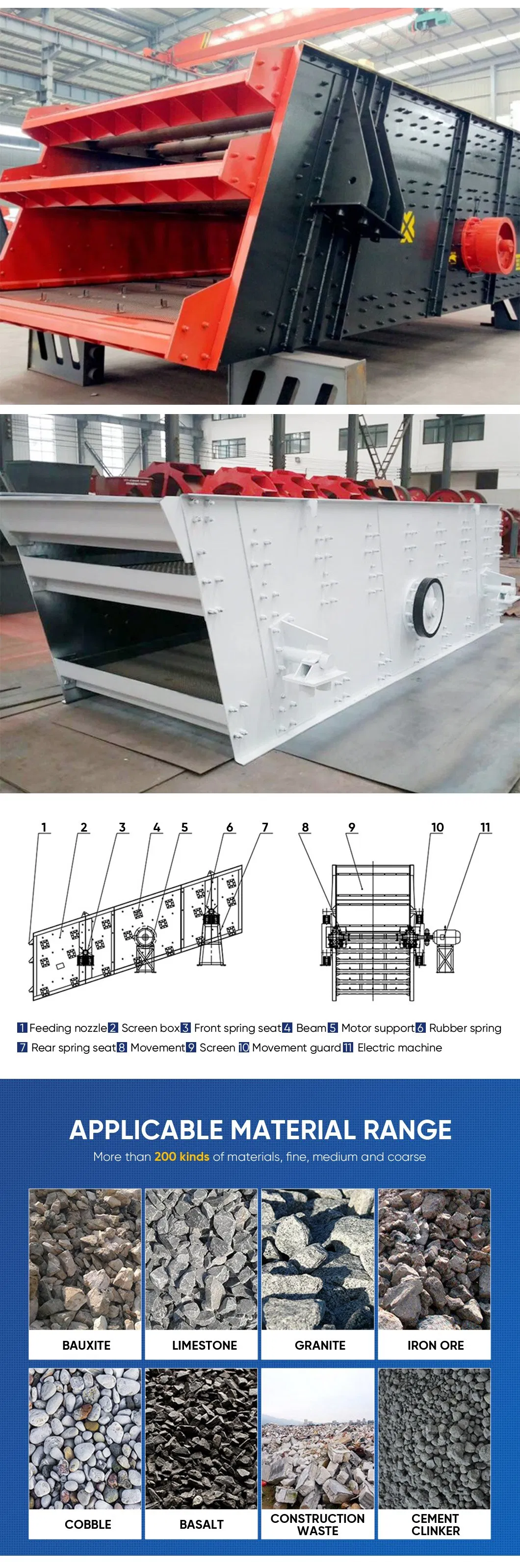

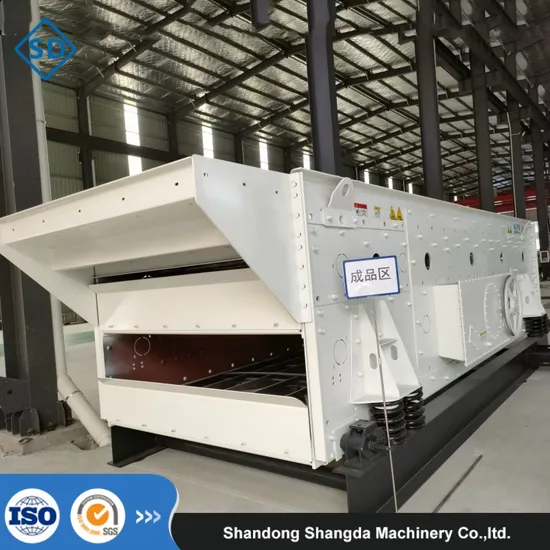

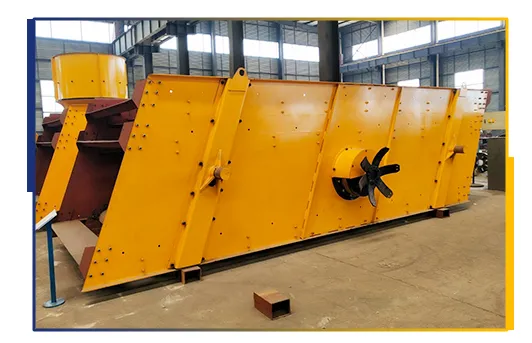

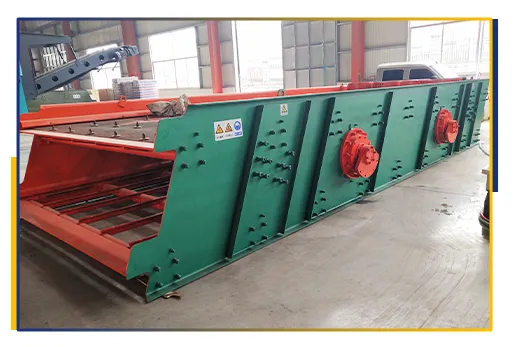

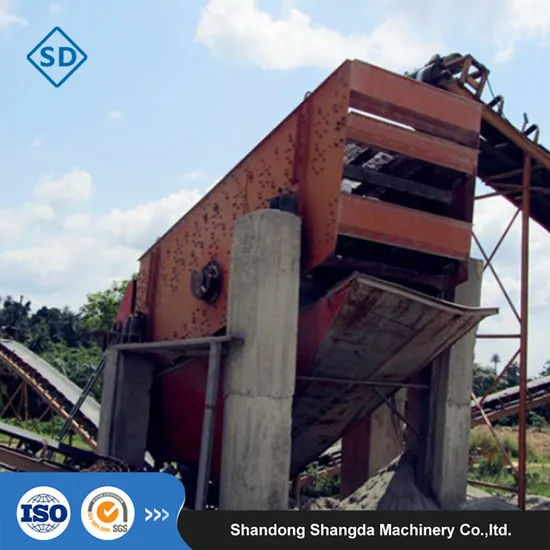

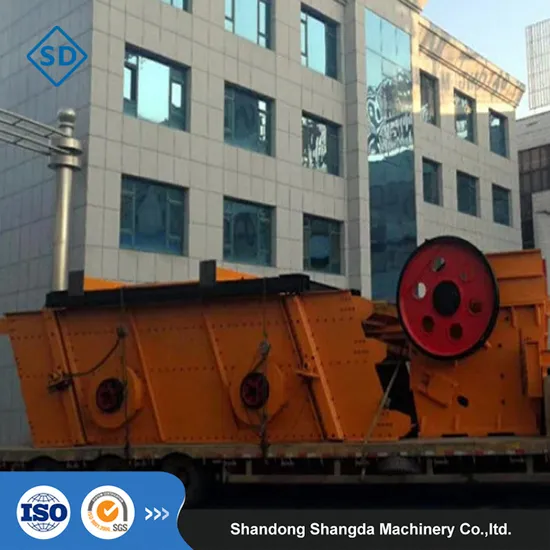

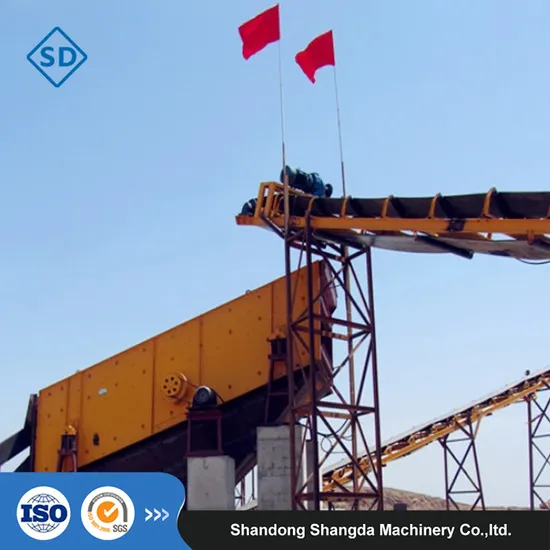

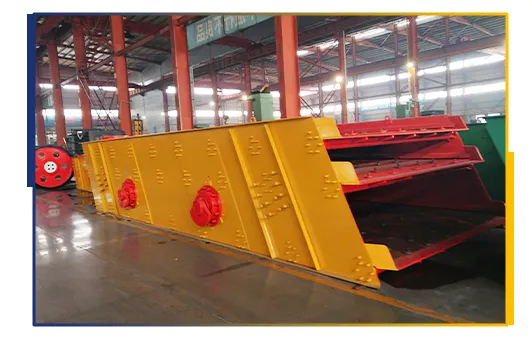

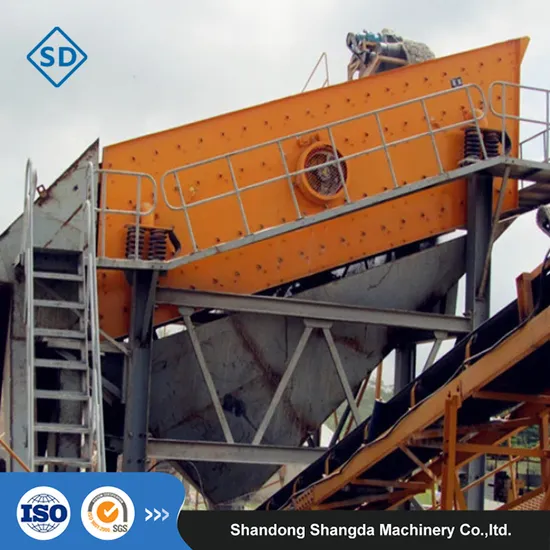

YK vibrating screen
YK vibrating screen, also known as YK series circular vibrating screen, is a kind of equipment that uses the principle of different particle size of materials to screen materials and grade materials. The motion path of the screen frame is elliptical. The material on the screen is thrown up by the upward motion of the screen, and after a distance, it falls back to the screen surface. This is repeated to complete the screening in the process of moving from the feed end to the discharge end.
The amplitude of the vibrating screen can be adjusted by changing the weight and position of the counterweight. Product Parameters
TECHNICAL DATA.: | Model | Qty of layers | Max. Feed size(mm) | Sieve Size(mm) | Power(kw) | Capacity (t/h) | Vibrating Frequency (r/min) | Double Amplitude (mm) |
| YK1030 | 2-4 | 80 | 1000×3000 | 4 | 20-70 | 960 | 5 |
| YK1240 | 2-4 | 80 | 1200×4000 | 5.5 | 30-90 | 960 | 5 |
| YK1345 | 2-4 | 80 | 1300×4000 | 15 | 40-100 | 960 | 6 |
| YK1555 | 2-4 | 120 | 1500×5000 | 22 | 80-180 | 960 | 6 |
| YK1860 | 2-4 | 150 | 1800×6000 | 22 | 100-220 | 960 | 7 |
| YK2160 | 2-4 | 150 | 2100×6000 | 30 | 120-260 | 960 | 8 |
| YK2470 | 2-4 | 180 | 2400×7000 | 37 | 160-280 | 960 | 8 |
| YK2670 | 2-4 | 180 | 2600×7000 | 37 | 200-300 | 960 | 8 |
| YK3070 | 2-4 | 240 | 3000×7000 | 45 | 300-360 | 960 | 8 |
01 Rugged case
Selected material, strong structure, long use time
02 Solid performance
Reasonable structure, small footprint, low noise, easy maintenance
03 Application

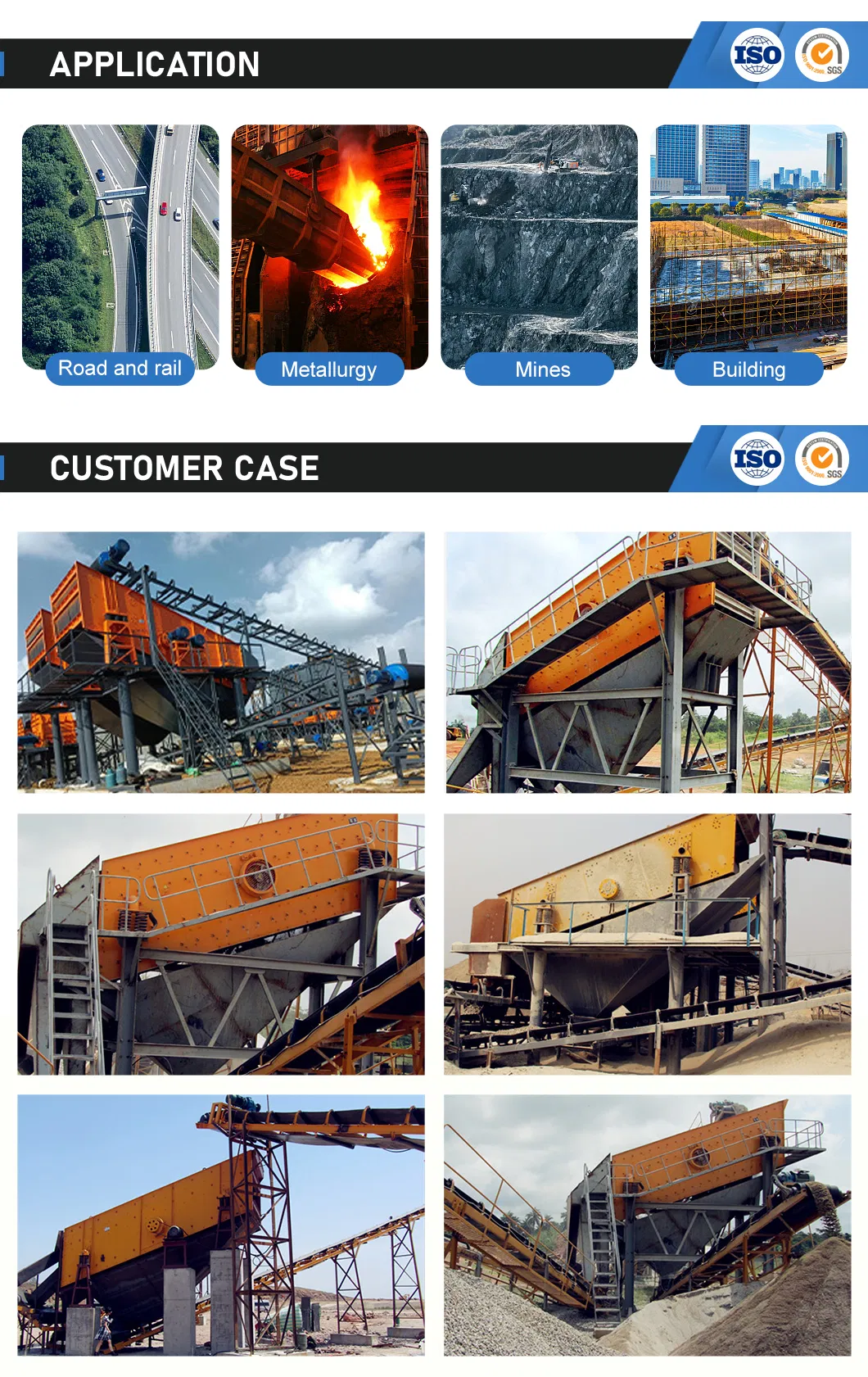

Widely used in building materials, ores, railways, highways, energy, transportation and other industries
