Heavy Duty Vibrating Feeder for Mining & Quarry Plant - Stone/Aggregate Feeding Machine, High Capacity Grizzly Feeder Manufacturer

Heavy Duty Vibrating Feeder for Mining & Quarry Plant - Stone/Aggregate Feeding Machine, High Capacity Grizzly Feeder Manufacturer

Customization:	Available
After-sales Service:	Guiding
Warranty:	One Year Expect Wearing Parts

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ZSW

Type

Vibrating

Chute Size

1500*6000

Max. Feeding

1000mm

Capacity

550-700t/H

Power

22kw

Color

Yellow, Orange, Red, etc.

Delivry Time

20 Days

Transport Package

in Container

Specification

ZSW

Trademark

SDSD

Origin

Shandong, China

HS Code

8428399000

Production Capacity

100/Year

Packaging & Delivery

Package Size

650.00cm * 160.00cm * 150.00cm

Package Gross Weight

5400.000kg

Product Description

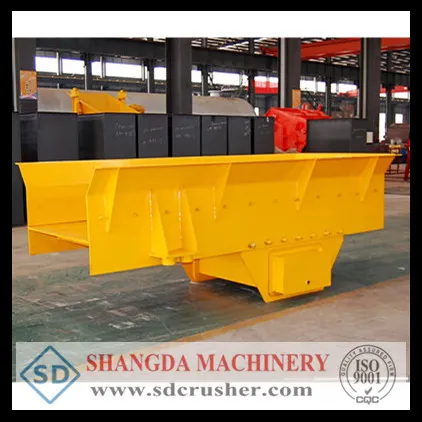

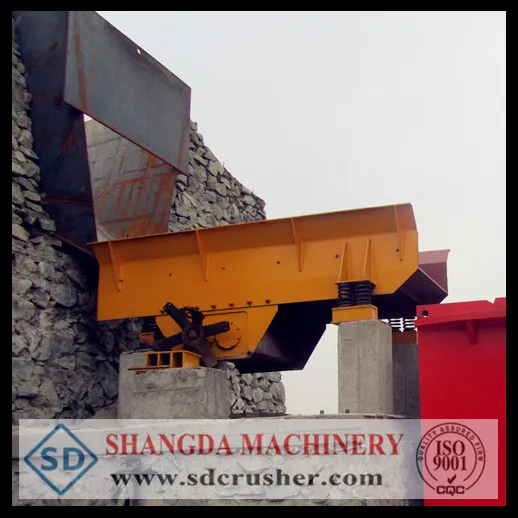

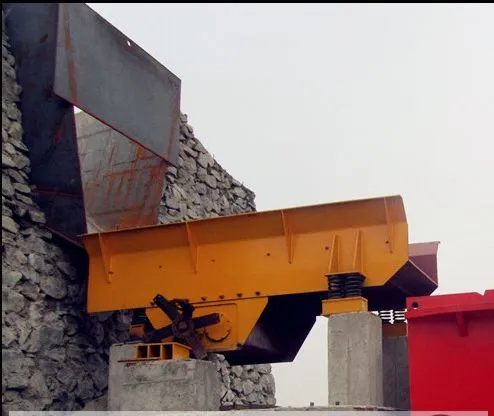

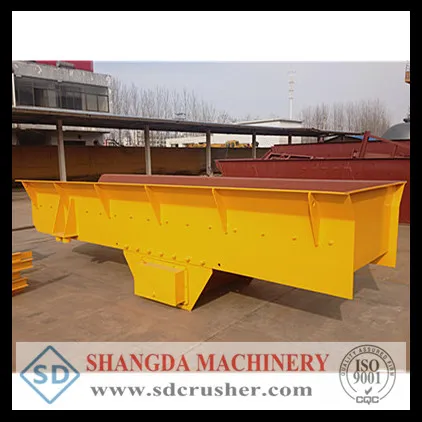

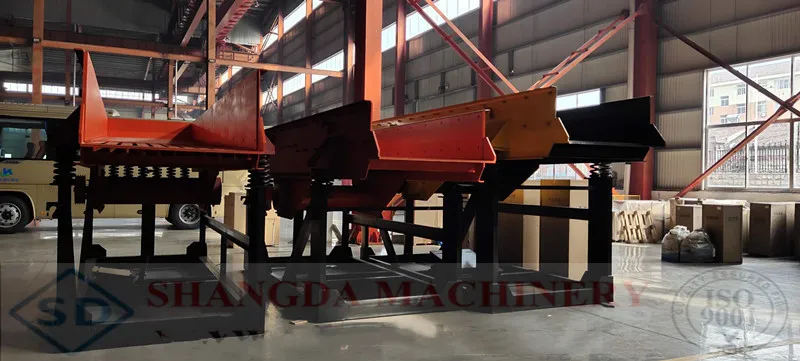

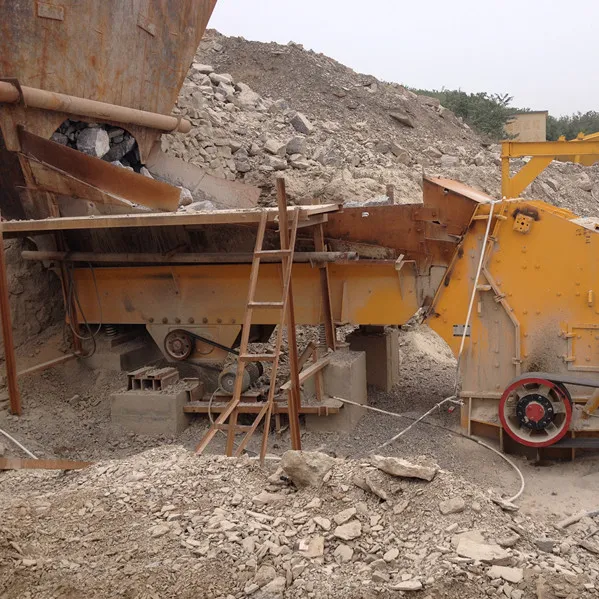

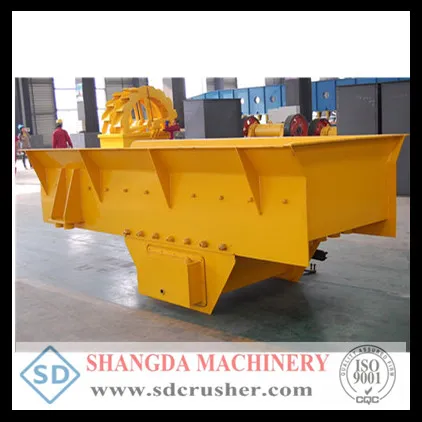

Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
Heavy Duty Vibrating Feeder for Mining & Quarry Plant - Stone/Aggregate Feeding Machine, High Capacity Grizzly Feeder Manufacturer

Features
1.Smoothly vibrating and long service life
2.Vibrating force adjustable, easy to operation.
3. Low noise and power consumption
4. Simple structure, easy to maintenance.
Working Principle

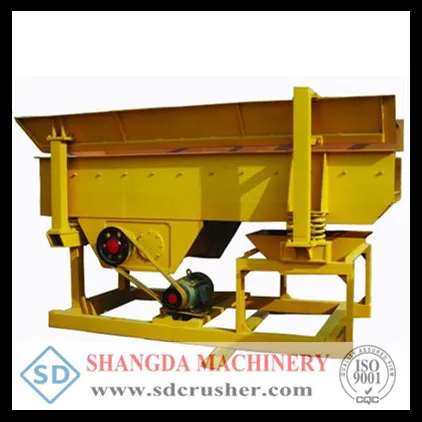

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.

Model	Chute size (mm)	Max. InputSize(mm)	Capacity (t/h)	Motor Power (kw)	Dimension(mm)	Weight (t)
ZSW630	600×3000	300	40-60	4	3500×1350×1930	3.3
ZSW730	700×3000	350	55-80	5.5	3500×1430×1930	3.9
ZSW830	800×3000	400	70-110	7.5	3500×1500×2030	4.3
ZSW935	900×3500	450	90-150	7.5	3700×1650×2070	4.8
ZSW1035	1000×3500	500	100-200	11	3700×1750×2070	5.4
ZSW1135	1100×3500	600	120-350	11	3500×1850×2070	5.8
ZSW1235	1200×3500	700	200-400	15	3500×1950×2070	6.3
ZSW1240	1200×4000	800	300-500	15	4200×1950×2070	7.2
ZSW1350	1300×5000	900	400-550	18.5	5300×2250×2070	8.0
ZSW1560	1500×6000	1000	550-700	22	6500×2250×2200	9.6
